PS7X1 Series
QUOTE AND SAMPLES
Fill out my online form.

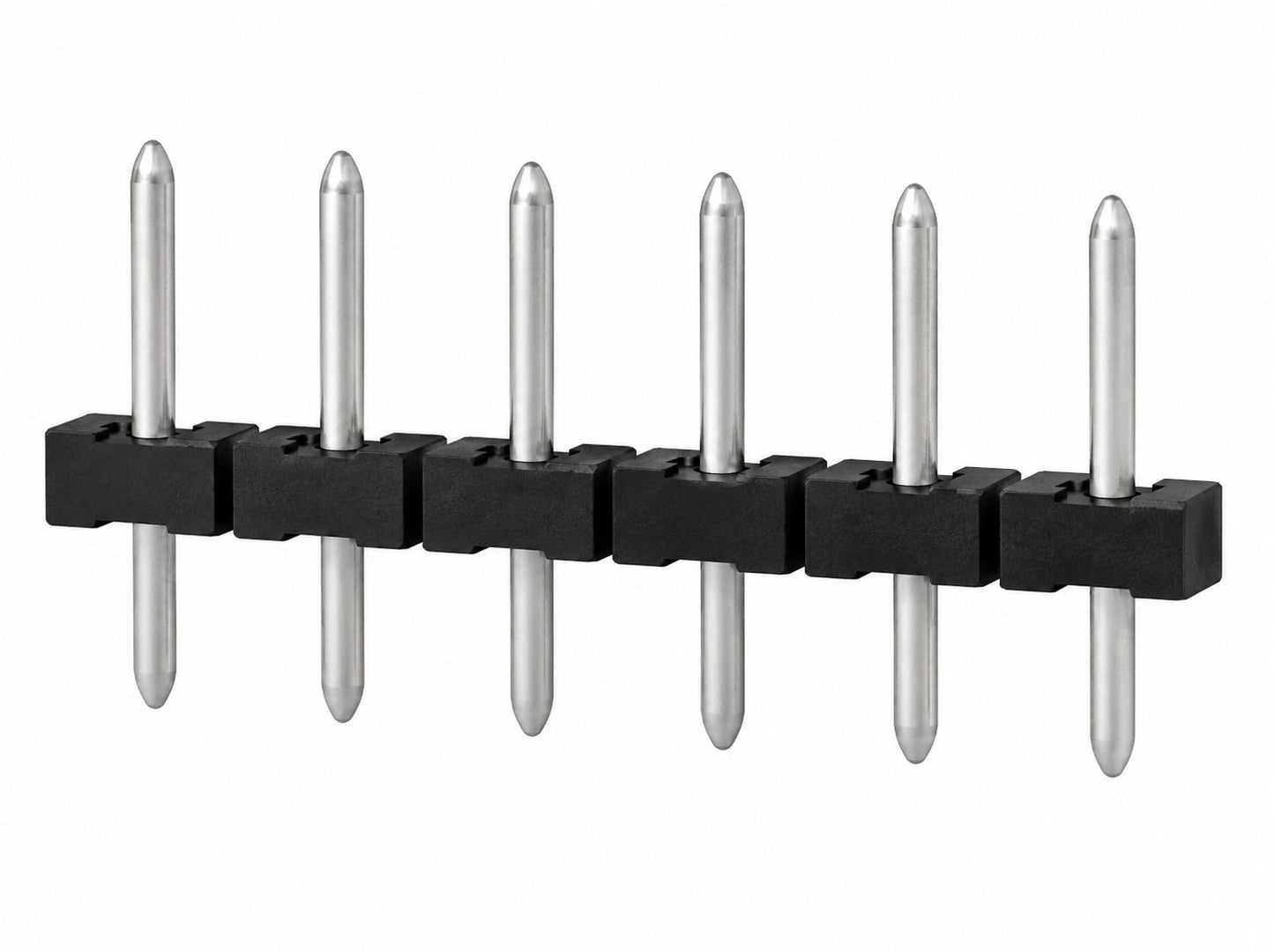

PS7X1 SERIES Pin Strips

Maximum number of positions: 12

Centerline Spacing: 5.00mm Spacing (0.197")

FEATURE:

Pin Strip with Optional Pick and Place Cover

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Solder Pin Material: Brass, Tin Plated

Cover: Polyamide, PA46

DOWNLOAD

Download Product PDF

PS7X1-XX-0XX.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:


DIMENSIONAL DRAWING

N = Number of Positions
