Name: TB7 SERIES Barrier Blocks
Brand: ebyelectro
Availability: InStock

Barrier Blocks > Tri-Barrier > Power (0.236”-0.787”) > TB7

Approvals

1 1

Power

TB7 Series - Tri-Barrier - 0.437" (11.1mm)

Request Sample Request 3D File

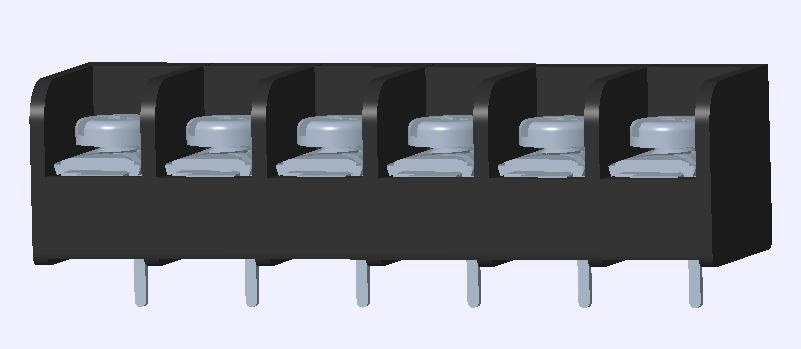

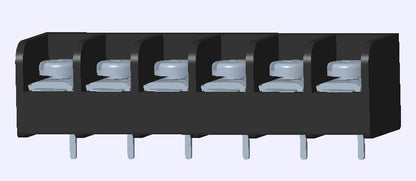

TB7 Barrier Blocks. It has a centerline spacing of 11.1mm. The voltage rating is 300 VAC. The current rating is 30 Amps. It accommodates wire sizes from 10-18AWG. It includes up to 26 positions. The torque rating is 12.0 lbs-in max. The soldering temperature is 260°C, 500°F for 5 seconds Max. It features a terminal screw made of Steel, Zinc Plated. The housing is constructed from Polycarbonate, UL 94V-0. Feature: Tri-Barrier.

Maximum number of positions 26

Centerline Spacing 0.437" (11.10mm)

Electrical

Voltage Rating 300 VAC

Current Rating 30 Amps

Wire Range Min / Max 10-18AWG

Mechanical

Torque 12.0 lbs-in. Max.

Soldering Temperatures 260°C, 500°F for 5 seconds Max

Material

Insulator Body Material: Polycarbonate, UL 94V-0

Terminal Screw Size: #8-32, Combo Head

Terminal Screw Material: Steel, Zinc Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Black

Product Notes

View full details

Contains dimensional drawing, full part number and component specifications.

View Product PDF
