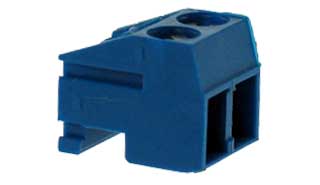

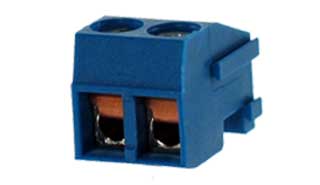

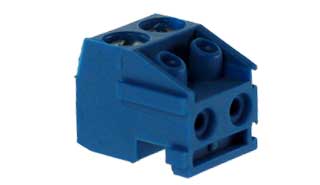

EB505 SERIES Pluggable Blocks

Maximum number of positions: 24

Centerline Spacing: 3.50mm Spacing (0.138")

ELECTRICAL:

Voltage Rating: 150 VAC

Current Rating: 10 Amps

Wire Range Min / Max: 16-28AWG

MECHANICAL:

Torque: 1.1 lbs-in. Max.

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M2.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Ni Plated

Wire Guard Material: PhBz

PRODUCT NOTES:

Compatible with the following pin strips: PS603

DOWNLOAD

Download Product PDF

EB505-XXDS-600.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

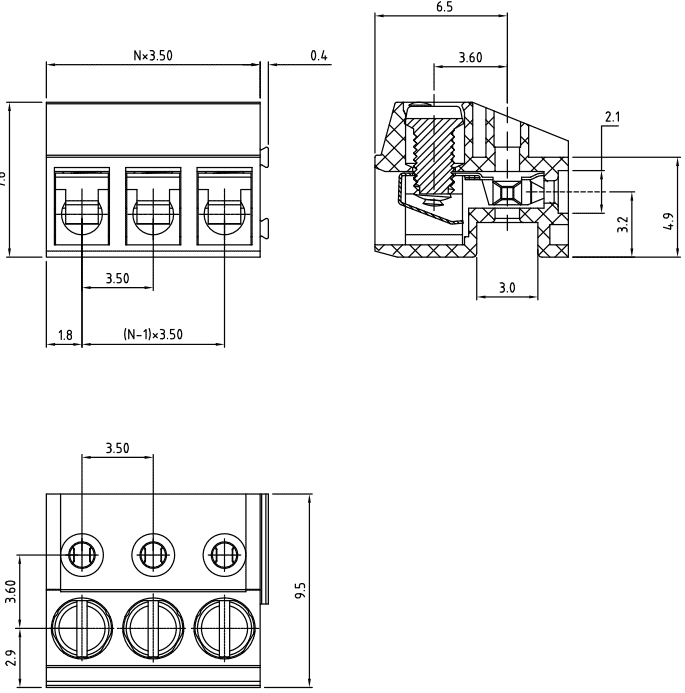

DIMENSIONAL DRAWING

N = Number of Positions
