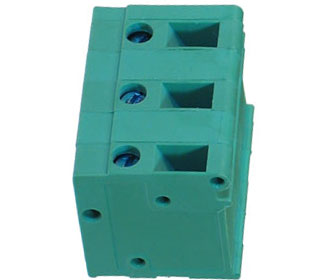

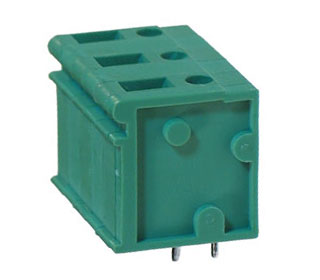

EB2211 SERIES Wire Guard Blocks

Maximum number of positions: 12

Centerline Spacing: 10.00mm Spacing (0.394")

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 20 Amps

Wire Range Min / Max: 12-22AWG

MECHANICAL:

Torque: 2.4 lbs-in. Max.

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M2.5

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Housing Material: Stamped Steel, Zinc Plated

Contact Cam: Steel, Zinc Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Green

DOWNLOAD

Download Product PDF

EB2211-XXDS-500.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

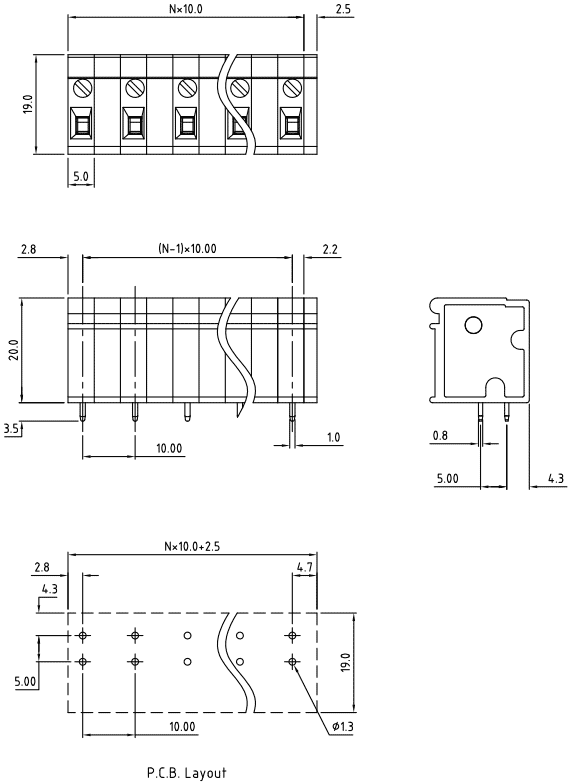

DIMENSIONAL DRAWING

N = Number of Positions
