EB1560M Series
QUOTE AND SAMPLES
Fill out my online form.

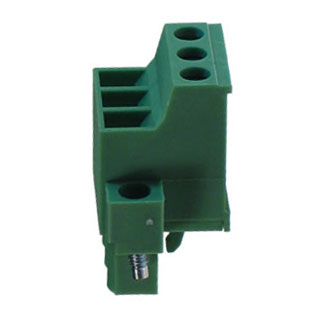

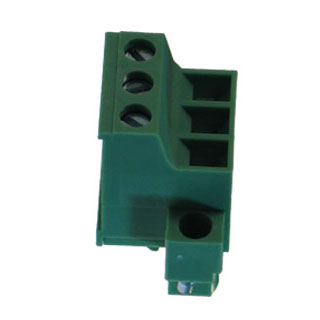

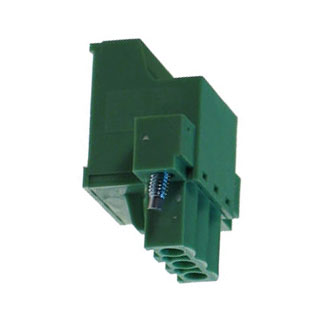

EB1560M SERIES Pluggable Blocks

Maximum number of positions: 24

Centerline Spacing: 5.00mm Spacing (0.197")

FEATURE:

Wire Entry on Top of Block, Mountable

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 20 Amps

Wire Range Min / Max: 12-22AWG

MECHANICAL:

Torque: 3.5 lbs-in. Max.

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M3.0

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Cam: Steel, Zinc Plated

Contact Clip Material: PhBz, Tin Plated

Color: Green

PRODUCT NOTES:

Compatible with the following headers:
Angled, Closed: AC1500M
Horizontal, Closed: HC1500M
Vertical, Closed: VC1500M

DOWNLOAD

Download Product PDF

EB1560M-XX-500.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

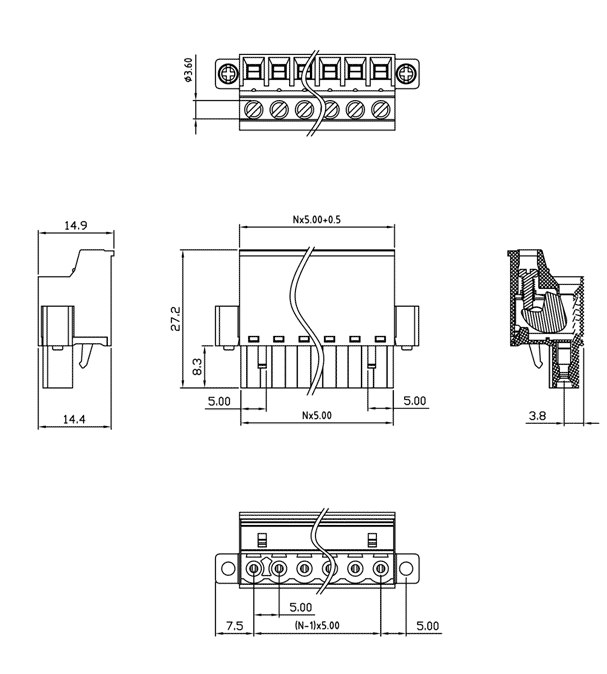

DIMENSIONAL DRAWING

N = Number of Positions
