Maximum number of positions: 24
Centerline Spacing: 5.08mm Spacing (0.200")
Voltage Rating: 300 VAC
Current Rating: 20 Amps
Wire Range Min / Max: 12-30AWG
Torque: 3.5 lbs-in. Max.
Soldering Tempertures: 260°C, 500°F for 5 seconds Max
Insulator Body Material: Polyamide, UL 94V-0
Terminal Screw Size: M3.0
Terminal Screw Material: Steel, Zinc Plated, "-" Slotted
Contact Block Material: Brass, Ni Plated
Contact Solder Pin Material: Brass, Tin Plated

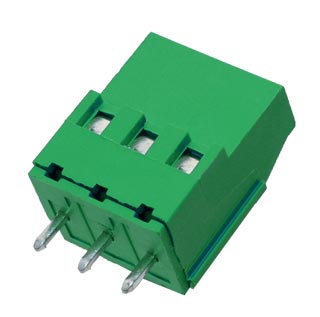

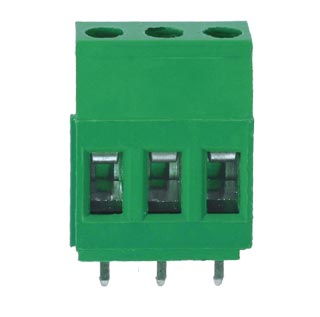

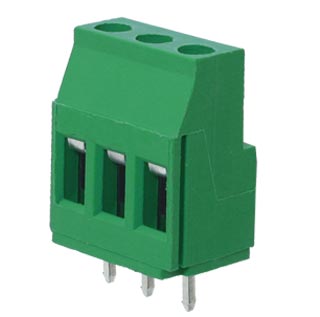

PRODUCT NOTES:EBY's Cage Clamp, direct solder, mini-blocks are the ideal choice for high reliability applications or those that require frequent insertion and withdrawals of the wiring harness.
Download Product PDF
Contains dimensional drawing, full part number and component specifications.

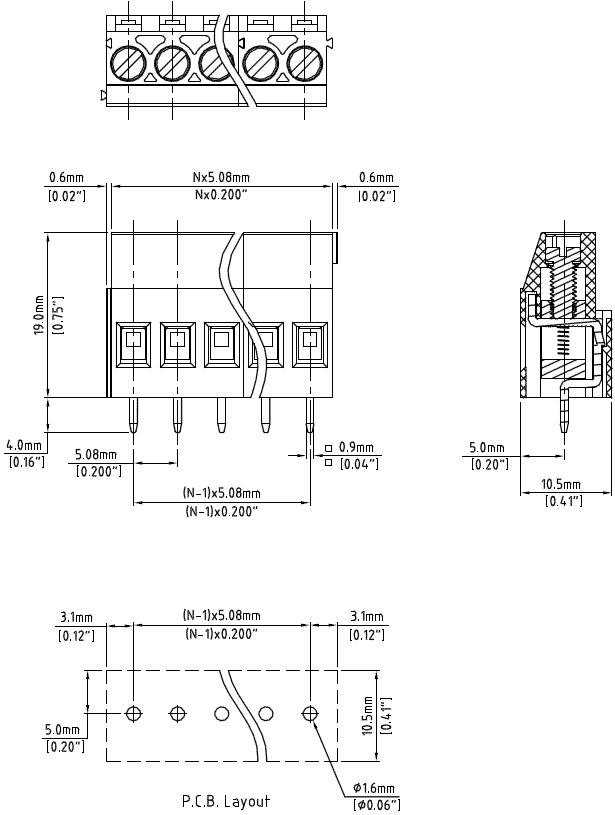

N = Number of Positions
