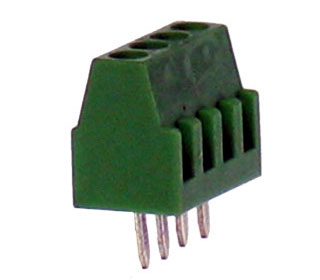

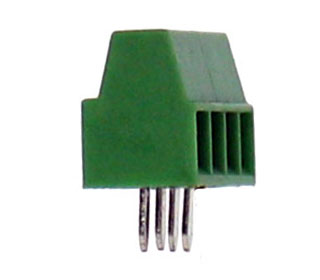

EB254 SERIES Rising Clamp Blocks

Maximum number of positions: 24

Centerline Spacing: 2.54mm Spacing (0.100")

ELECTRICAL:

Voltage Rating: 150 VAC

Current Rating: 6 Amps

Wire Range Min / Max: 18-30AWG

MECHANICAL:

Torque: 1.3 lbs-in. Max.

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Terminal Screw Size: M1.6

Terminal Screw Material: Steel, Zinc Plated, "-" Slotted

Contact Block Material: Brass, Ni Plated

Contact Solder Pin Material: Brass, Tin Plated

Color: Green

DOWNLOAD

Download Product PDF

EB254-XX-500.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

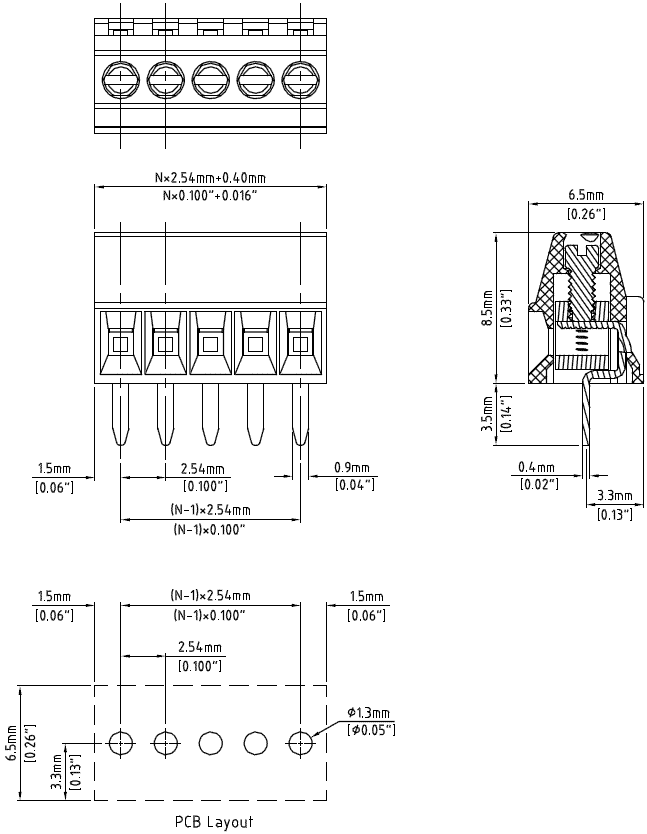

DIMENSIONAL DRAWING

N = Number of Positions
