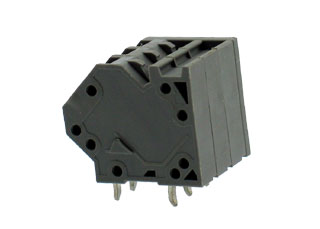

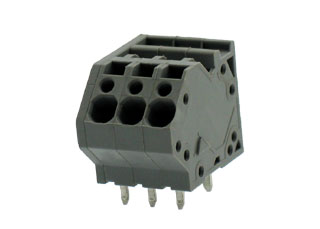

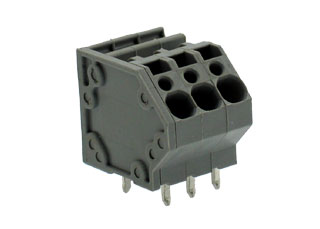

EB3545-XX-800 SERIES Screwless Blocks

Maximum number of positions: 24

Centerline Spacing: 5.00mm Spacing (0.197")

ELECTRICAL:

Voltage Rating: 300 VAC

Current Rating: 10 Amps

Wire Range Min / Max: 12-28AWG

MECHANICAL:

Soldering Tempertures: 260°C, 500°F for 5 seconds Max

MATERIAL:

Insulator Body Material: Polyamide, UL 94V-0

Contact Block Material: Brass, Tin Plated

Wire Retention Spring: Stainless Steel

DOWNLOAD

Download Product PDF

EB3545-XX-800.pdf

Contains dimensional drawing, full part number and component specifications.

APPROVALS:

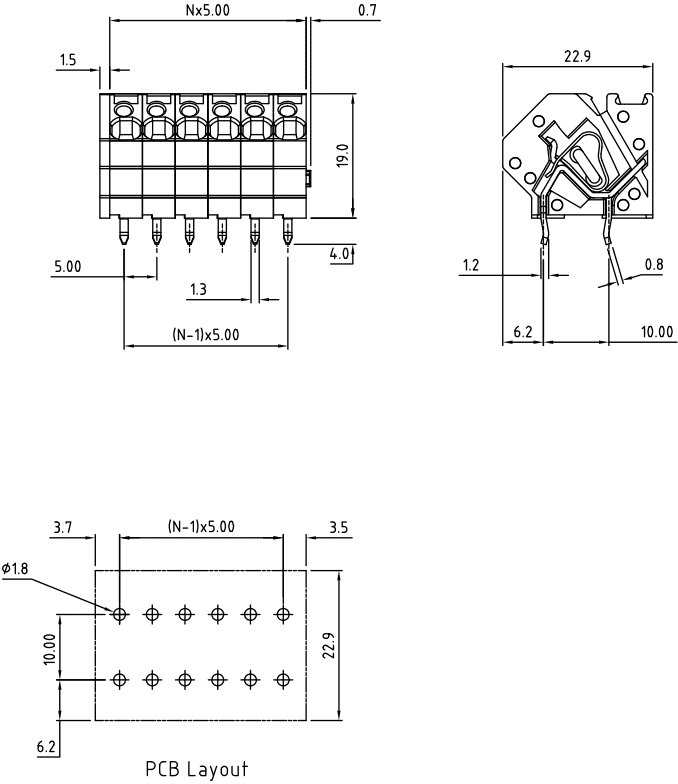

DIMENSIONAL DRAWING

N = Number of Positions
