HO1508-XX-500 SERIES PLUGGABLE HEADER - 5.08 mm Spacing

Horizontal, Open

Download Product Info Sheet > HO1508-XX-500.pdf - 61 Kb
Photos and Specifications | Dimensional Drawings
QUOTE BASKET
Add this item to your quote basket:
Quantity:
Positions Needed:
Maximum # of Positions: 24

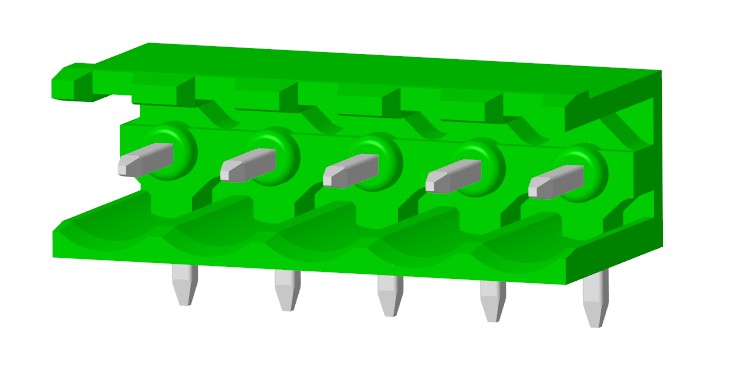

—  PHOTOS (mouse-over to enlarge) —
PRODUCT NOTES
Compatible with the following blocks: EB1508, EB1528, EB1558A, EB1558B, EB1568, EB403, EB406, EB453, EB454
— SPECIFICATIONS —

Centerline Spacing: 5.08 mm (0.200")
ELECTRICAL
Voltage Rating 300 VAC
Current Rating 20 Amps
MECHANICAL
Operating Temperatures -40 °C to 115 °C
-40 °F to 239 °F
Soldering Temperatures 260 °C, 500 °F for 5 seconds max
MATERIAL
Insulator Body Material Polyamide, UL 94V-0
Contact Solder Pin Material Brass, Tin Plated
Color Green
PART NUMBERING
HO1508-XX-500
See part no. diagram on PDF:
Click here for Full Part Number
Description & Downloadable PDF (61 Kb)


DIMENSIONAL DRAWINGS
N = Number of Positions
